AI Data Centers Are Driving a New Demand for Large-Diameter Piping and Flanges When people talk about the massive AI infrastructure buildout, the conversation usually centers on GPUs, data centers, electrical power, land, and megawatts. But there is another critical infrastructure component keeping these facilities operating: cooling. As AI workloads continue to increase computing density, data centers are generating substantially more heat. Traditional air-cooling systems are becoming less practical for many high-density applications, accelerating the adoption of liquid-cooling technologies such as direct-to-chip cooling, rear-door heat exchangers, and other advanced thermal-management systems. Behind these technologies is an extensive industrial piping network. That is where large-diameter piping, pipe fittings, valves, and flanges become an essential part of the data center infrastructure. For companies involved in piping procurement, fabrication, engineering, and supply, the growth of AI infrastructure represents a significant emerging opportunity. Why Data Center Cooling Is Becoming a Piping Problem A modern hyperscale or AI-focused data center can contain thousands of high-performance servers operating at extremely high power densities. The heat generated by these systems has to be transferred away continuously and reliably. Liquid cooling is increasingly being used because liquids can transfer heat much more efficiently than air. However, cooling the processor is only one part of the system. The heat ultimately has to travel through a building-scale thermal-management system that can include: Chilled-water piping Condenser-water piping Cooling towers Chillers Pumps Heat exchangers Distribution headers Control valves Pipe fittings Flanged connections Mechanical equipment connections In large facilities, these systems can involve substantial quantities of piping and hundreds or thousands of individual connection points. Every connection between piping, valves, pumps, chillers, heat exchangers, and other equipment creates another requirement for properly selected and specified flanges. Large-Diameter Headers Are at the Center of the System The piping inside a data center cooling system is not simply a collection of small utility lines. Large facilities can require significant-diameter distribution headers to move high volumes of cooling water throughout the building and between mechanical systems. Depending on the facility design, piping can range from relatively small branch connections to large headers measuring several feet in diameter. The larger the piping becomes, the more important proper flange selection, dimensional accuracy, bolt patterns, pressure ratings, material specifications, and delivery schedules become. A flange that does not match the required standard or drilling pattern can create significant installation problems—particularly when it is connected to large and expensive mechanical equipment. For that reason, flange requirements should be established during the engineering and procurement stages rather than left until fabrication or installation. Chilled Water and Condenser Water: Two Different Applications One of the most important considerations when specifying cooling-system piping is understanding the application. Chilled Water Systems Chilled-water systems generally circulate conditioned water between chillers and cooling equipment. Because these systems are typically closed-loop systems, water treatment and corrosion control can be managed more effectively. The piping and flange specification will depend on the project’s: Operating pressure Temperature Pipe diameter Material Applicable codes and standards Equipment connections Project specifications For many projects, ASME-standard flanges may be used for equipment and piping connections, while large-diameter waterworks applications can introduce AWWA standards into the specification. Condenser Water Systems Condenser-water systems are used to transfer heat from the cooling system to cooling towers or other heat-rejection equipment. Unlike a closed chilled-water loop, condenser-water systems can have different operating and water-treatment conditions. Makeup water, oxygen exposure, water chemistry, and environmental conditions can influence material and coating requirements. That makes correct material and flange selection particularly important. Where AWWA Flanges Enter the Picture Large-diameter cooling-water systems can involve more than traditional ASME process-piping standards. Depending on the project specification and application, AWWA standards may be relevant for large-diameter water-service piping and flanged connections. Standards such as AWWA C207 address steel pipe flanges for waterworks service, while other AWWA standards address steel and ductile-iron pipe and related components. This creates an important distinction for procurement teams. A large-diameter flange should not be specified simply by saying “20-inch flange” or “36-inch flange.” The procurement specification may also need to identify: Flange standard Pressure class Nominal pipe size Outside diameter Bolt-hole pattern Bolt-hole diameter Number of bolt holes Flange thickness Facing requirements Material Coating requirements Applicable project specifications A flange manufactured to the wrong standard may physically resemble the required component but still fail to match the mating flange. That is why standard compatibility matters as much as size. ASME vs. AWWA: Why the Difference Matters ASME and AWWA flanges are not interchangeable simply because they have the same nominal pipe size. Their dimensional requirements, pressure classifications, drilling patterns, and intended applications can differ. For data center cooling projects, engineering and procurement teams should determine early whether the system requires: ASME flanges Typically associated with process piping, equipment connections, and applications governed by ASME standards. AWWA flanges Commonly associated with waterworks and large-diameter water-service applications where the project specification calls for AWWA standards. The correct selection ultimately depends on the engineering design, applicable codes, project specifications, and the piping system’s operating conditions. What Data Center Buyers Should Confirm Before Ordering The rapid construction schedules associated with data center projects make procurement accuracy especially important. Before placing an order for large-diameter flanges or piping components, buyers should confirm the following: Decision Point What to Confirm Application Chilled water, condenser water, or another cooling service Standard ASME, AWWA, or project-specific requirements Size Header, branch, equipment connection, or specialty connection Pressure Rating Actual operating and design pressure Material Carbon steel, stainless steel, ductile iron, or specified material Facing Required flange facing and mating configuration Drilling Bolt-hole diameter, quantity, spacing, and pattern Coating Interior/exterior coating requirements where applicable Quantity Total requirement by size, class, and configuration Lead Time Manufacturing and delivery requirements Documentation MTRs, certifications, dimensional information, and project documentation Getting these details right at the beginning can prevent expensive changes later. Why Large-Diameter Flanges Can Become a Project Bottleneck Large-diameter components are not always readily available from standard inventory. As the diameter increases, manufacturing, handling, transportation, storage, and production scheduling

High-Pressure Flanges: Everything You Need to Know High-pressure flanges are critical components in industrial piping systems where safety, reliability, and performance are essential. Designed to connect pipes, valves, pumps, pressure vessels, and other equipment, these flanges are engineered to withstand demanding operating conditions, including high pressures, elevated temperatures, and corrosive environments. At STU Piping., we supply high-quality high-pressure flanges for demanding applications across the oil & gas, petrochemical, power generation, chemical processing, and other industries. In this guide, we’ll cover the specifications, material grades, standards, types, applications, and selection criteria you should consider when purchasing high-pressure flanges. What Are High-Pressure Flanges? High-pressure flanges are mechanical components used to create secure, bolted connections between piping and equipment operating under elevated pressure and temperature conditions. Depending on the application, they can be manufactured from carbon steel, stainless steel, alloy steel, duplex steel, super duplex steel, and nickel alloys. The correct flange must be selected according to the system’s pressure, temperature, fluid characteristics, material compatibility, applicable standards, and connection requirements. A properly selected flange helps provide a reliable connection while allowing equipment to be assembled, inspected, maintained, and dismantled when required. Key Specifications of High-Pressure Flanges Pressure Rating Pressure rating is one of the most important considerations when selecting a flange. Common ASME pressure classes include: Class 150 Class 300 Class 600 Class 900 Class 1500 Class 2500 For high-pressure applications, Classes 600, 900, 1500, and 2500 are frequently specified. The actual allowable working pressure depends on factors such as the flange material, temperature, flange class, and applicable standard. Important: A flange’s pressure class should not be treated as a fixed pressure value in psi at every temperature. Allowable pressure is determined from the applicable pressure-temperature rating tables. Temperature Rating High-pressure flanges may be required to operate across a broad temperature range, from low-temperature service to elevated-temperature applications. Materials such as alloy steel and stainless steel can be selected for demanding temperature conditions, but the allowable pressure and material properties must be checked at the actual operating temperature. Material Common flange materials include: Carbon steel Stainless steel Alloy steel Duplex stainless steel Super duplex stainless steel Nickel alloys Material selection should consider pressure, temperature, corrosion exposure, fluid composition, mechanical requirements, and applicable material specifications. Dimensions Flange dimensions are generally standardized to ensure compatibility with matching piping and equipment. Important dimensions may include: Outside diameter Flange thickness Bolt circle diameter Number of bolt holes Bolt-hole diameter Bore diameter Raised-face or RTJ dimensions Overall flange configuration The applicable standard should always be checked before ordering because dimensions can vary according to flange type, pressure class, nominal pipe size, and standard. Material Grades for High-Pressure Flanges Carbon Steel Flanges ASTM A105 is one of the most widely specified forged carbon steel materials for piping components, including flanges. ASTM A350 LF2 is commonly selected for applications requiring carbon or low-alloy steel components suitable for low-temperature service. Stainless Steel Flanges 304/304L: Provides good corrosion resistance and is widely used across general industrial and process applications. 316/316L: Offers improved resistance to chloride-containing and corrosive environments compared with 304/304L and is widely used in chemical, petrochemical, marine, and process applications. Alloy Steel Flanges Common ASTM A182 alloy steel grades include: F5 F9 F11 F22 F91 These chromium-molybdenum alloy steels are used in applications requiring elevated-temperature strength and resistance to demanding operating conditions. Duplex and Super Duplex Stainless Steel Common grades include UNS S31803 and UNS S32205. Duplex stainless steels combine high mechanical strength with strong resistance to pitting, crevice corrosion, and stress-corrosion-related environments. They are particularly useful in demanding oil & gas, chemical processing, marine, and desalination applications. Nickel Alloys Nickel-based materials such as Inconel 625 and Inconel 718 may be selected for specialized applications requiring a combination of high strength, corrosion resistance, and resistance to demanding temperature conditions. The exact alloy should be selected according to the operating environment and applicable material specification. Standards Governing High-Pressure Flanges Selecting a flange manufactured to the correct standard is essential for ensuring dimensional compatibility and appropriate performance. ASME B16.5 ASME B16.5 covers pipe flanges and flanged fittings in NPS 1/2 through NPS 24. It addresses areas including dimensions, tolerances, pressure-temperature ratings, materials, marking, and testing requirements. ASME B16.47 ASME B16.47 covers large-diameter steel flanges from NPS 26 through NPS 60. The standard includes Series A and Series B flange dimensions, which should be clearly specified when purchasing large-diameter flanges. API 6A API 6A applies to wellhead and Christmas tree equipment used in the petroleum and natural gas industry. Flanges and connectors used in these applications are designed around the demanding pressure and service requirements of wellhead equipment. DIN and EN Standards European projects may specify standards such as EN 1092-1 for flanges and their associated dimensions and pressure designations. The applicable standard should always be confirmed against the project’s engineering specifications. Types of High-Pressure Flanges Different flange designs are suited to different operating and installation requirements. Weld Neck Flanges Weld neck (WN) flanges feature a long tapered hub that provides a gradual transition from the flange to the pipe. They are commonly selected for high-pressure, high-temperature, and cyclic-service applications because their design provides favorable stress distribution. Typical applications: pipelines, pressure vessels, refineries, power plants, and demanding process systems. Blind Flanges Blind flanges are used to close the end of a piping system, nozzle, valve, or pressure vessel connection. They are particularly useful when a system needs to be isolated for maintenance, testing, or future expansion. Socket Weld Flanges Socket weld flanges are commonly used with smaller-diameter piping. The pipe fits into a socket in the flange and is attached using a fillet weld. They can be suitable for high-pressure services where small-bore piping connections are required. Slip-On Flanges Slip-on flanges are fitted over the pipe and typically welded both internally and externally. They are relatively easy to install and align, although weld neck flanges are generally preferred for more demanding high-pressure and cyclic applications. Lap Joint Flanges Lap joint flanges are used together with stub ends. The flange itself does not need to be welded directly to the pipe, allowing the flange to rotate for easier bolt-hole alignment. This design can

In a complex piping system, a flange may look like a simple ring of forged metal.It is anything but simple. A flange sits at one of the most important interfaces in a piping network—between pipe and valve, pipe and pump, equipment and pipeline, or sometimes between generations of infrastructure that were never originally designed to work together. When everything is correctly specified, the connection becomes almost invisible. When it is not, a seemingly minor dimensional mismatch can lead to leakage, installation delays, field modification, equipment damage, or costly downtime. That is where custom flange engineering becomes more than an alternative to a standard catalogue component. It becomes a way to solve a specific engineering problem. Standard Is Useful. It Just Isn’t Universal. Standardized flanges are the foundation of modern piping systems. They provide established dimensions, pressure classes, materials and connection configurations that make procurement and installation predictable. But real projects rarely exist in a perfect catalogue environment. Engineers may encounter: Existing equipment with unusual bolt patterns Legacy piping built to older specifications Non-standard pipe dimensions Special bore requirements Unusual pressure or temperature conditions Corrosive or chemically aggressive media Space and alignment limitations Retrofit equipment with different connection geometry Project-specific standards or certification requirements In these situations, forcing a standard flange into the design can create more problems than it solves. The better question is not: “Which standard flange is closest?”  It is: “What flange geometry, material and configuration does this connection actually require?” A Flange Is a System Interface A flange does three jobs simultaneously. It creates a mechanical connection. It transfers loads between connected components. And, together with the gasket and bolting system, it forms a pressure-containing seal. That means flange performance depends on much more than outside diameter and bolt-hole count. The engineering process may need to consider: Material grade Pressure and temperature Bore diameter Wall thickness Flange thickness Face configuration Bolt-hole pattern Bolt size Hub geometry Gasket arrangement Corrosion environment Thermal expansion Equipment interface Applicable manufacturing and inspection requirements A custom flange therefore should not simply be viewed as a non-standard shape. It is an engineered component designed around the conditions of a particular connection. Where Custom Flanges Become Essential Retrofitting Existing Equipment Retrofit projects are among the clearest examples of where standard components can fall short. An existing facility may contain equipment installed decades ago. Its flange dimensions, drilling, face geometry or pressure requirements may no longer correspond to today’s commonly available configurations. Replacing the entire system simply to accommodate a standard flange can be unnecessary and expensive. A custom flange can act as the interface between the existing installation and the new equipment. Instead of rebuilding a functioning section of the plant, the connection itself can be engineered to bridge the difference. Special Material Requirements Not every process can rely on conventional carbon steel. High temperatures, corrosive fluids, aggressive chemicals and demanding operating environments may require specialized alloys or specific material grades. Material selection must therefore begin with the service conditions—not with whatever material happens to be readily available. The flange must retain its mechanical and sealing performance throughout the expected operating environment. Non-Standard Dimensions Sometimes the problem is purely geometric. The required flange may have: A special outside diameter An unusual bolt circle A non-standard bore Increased thickness Modified hub dimensions Special face machining Custom connection geometry These requirements can arise from existing equipment, unusual piping dimensions or project-specific design constraints. This is where custom manufacturing eliminates the need to redesign the surrounding system simply because a catalogue component does not exist. Higher Mechanical Demands Pressure is only one part of the loading picture. A flange may also experience forces generated by: Thermal expansion Vibration Equipment movement Pipe weight Pressure fluctuations Repeated thermal cycles External mechanical loads For demanding applications, flange geometry must be considered as part of the overall mechanical design. Choosing the Right Custom Flange Configuration Custom does not necessarily mean inventing an entirely new flange type. Often, the solution begins with a recognized configuration and modifies it for the application. Weld Neck Flanges Weld neck designs are commonly selected where a robust transition between the pipe and flange is required. Their tapered hub geometry can provide a smoother load transition and is particularly valuable in applications involving higher pressures, temperatures or cyclic loading. For demanding services, the geometry of the hub and bore should be considered alongside the basic flange dimensions. Slip-On Flanges Slip-on configurations can provide practical installation and alignment advantages and are widely used in appropriate lower-demand services. Where a project permits their use, they can provide an economical connection. However, they should not be substituted for a specified weld-neck configuration merely because the dimensions appear compatible. The project specification remains the deciding factor. Blind Flanges Blind flanges provide a means of isolating or closing a piping section, vessel opening or equipment connection. Custom versions can incorporate features such as special thicknesses, tapped connections or other project-specific requirements where the application demands them. Socket Weld and Threaded Configurations For smaller-diameter piping, socket weld and threaded configurations can provide practical alternatives where welding access, installation conditions or service requirements influence the connection design. Again, the correct choice depends on the operating environment and applicable engineering requirements. Specialty and Combination Designs Some applications require a flange to perform an additional function. Examples can include: Orifice flange assemblies Special inspection or test ports Modified isolation configurations Swivel arrangements Combination interfaces Special machining features These designs demonstrate the real value of custom manufacturing: the flange can be developed around the function of the connection, rather than the limitations of a catalogue. The Custom Flange Development Process A reliable custom flange does not begin at the forging press. It begins with information. Step 1: Define the Application The first stage is understanding what the flange must actually do. This includes the pipe or equipment connection, operating conditions, installation environment and applicable project requirements. Step 2: Establish the Geometry Engineering information is then translated into the required flange geometry. Dimensions may include: Outside diameter

Walk into the mechanical room of a modern commercial building and the scene is familiar: chillers, pumps, heat exchangers, valves, insulated pipework, strainers and a network of bolted connections. Most of these components are designed to operate quietly for years. That is, until a flange connection starts leaking. In a commercial hydronic system, a flange is rarely an isolated component. It sits at the interface between piping, equipment, valves, gaskets and operating conditions. A seemingly minor mismatch in flange face, pressure class, material or gasket selection can therefore become a major maintenance problem. The key is to stop treating flange selection as a catalogue exercise. The right flange is the one that matches the entire connection. Where Flanges Matter in a Hydronic System Commercial HVAC systems typically circulate chilled water, condenser water or heating water through extensive piping networks. These circuits connect directly to equipment where reliable, serviceable joints are essential. Flanged connections are commonly found at: Chilled-water pumps Chiller evaporator and condenser connections Cooling tower connections Heat exchangers Large control and isolation valves Strainers Air separators Pump suction and discharge connections Larger-diameter distribution piping Smaller branch lines may use threaded, soldered or grooved connections, but flanges become increasingly important as pipe diameter, equipment size and maintenance requirements increase. This makes the flange an important mechanical interface, not simply a means of joining two pieces of pipe. Class 150 Is Common — But It Is Not an Automatic Answer Commercial hydronic systems generally operate at considerably lower pressures than many process or petrochemical systems. Consequently, Class 150 flanges are widely used for chilled-water, condenser-water and heating-water applications. A typical selection may involve carbon-steel flanges manufactured to the applicable dimensional and material requirements, with the exact configuration determined by the piping specification and equipment connection. But there is an important distinction: Low operating pressure does not automatically mean Class 150 is suitable everywhere. A building’s elevation can introduce significant static head. In a high-rise building, the pressure at the lower sections of a water-filled riser can be substantially higher than the pressure at the upper floors. Temperature also matters. Steam, high-temperature heating water and other elevated-temperature services can change the pressure-temperature rating requirements of the connection. Therefore, flange selection should consider: Operating pressure + static head + temperature + equipment rating + piping specification —not simply the nominal pump pressure. The Cast-Iron Connection: Where Good Equipment Can Meet the Wrong Flange One of the most important details in HVAC flange selection is the connection between steel piping and cast-iron equipment. Cast-iron pumps and valves commonly use flat-face connections. This creates an important installation requirement when they are connected to steel piping. A raised-face steel flange should not simply be bolted against a flat-face cast-iron equipment flange. Why? Because the raised face concentrates the compressive load over a smaller area. Cast iron is comparatively brittle, and an incorrectly selected connection can introduce damaging stresses into the equipment flange. The safer approach is to use a compatible flat-face steel flange with a full-face gasket, where required by the equipment and piping specification. This allows the gasket and flange faces to distribute the bolt load across a larger surface. It is a small detail during procurement. It can become an expensive detail during commissioning. The Gasket Is Part of the Flange Connection A flange does not seal by itself. The flange, gasket, bolts and mating faces work together as one connection. For hydronic applications, gasket selection should take into account: Fluid type Operating temperature Operating pressure Flange face configuration Equipment manufacturer’s requirements Chemical compatibility Applicable standards and project specifications For many water-service applications, non-metallic gasket materials such as EPDM may be appropriate, provided the material is correctly rated for the actual service. The important principle is simple: Do not select the gasket independently from the flange face. A flat-face connection, for example, requires a gasket arrangement appropriate to that geometry. Likewise, the bolt material, tightening procedure and flange alignment influence the final performance of the joint. Slip-On vs. Weld Neck: Cost or Engineering Requirement? For many commercial HVAC projects, slip-on flanges are attractive because they can be simpler to fabricate and may reduce installation cost. They can be suitable for many lower-pressure applications. But cost should not be the only consideration. Weld neck flanges provide a more gradual transition between the pipe and flange and can offer advantages where fatigue resistance, mechanical loading, thermal cycling or project specifications demand a more robust connection. That does not mean weld neck is automatically “better.” It means the flange style should follow the engineering requirement. If the project specification calls for weld neck flanges, substituting slip-on simply because the system pressure appears low can create a procurement and compliance problem. Always check the project specification before finalizing the BOM. The Hidden Variable: Equipment Nozzle Design One of the easiest mistakes in flange procurement is looking only at the pipe size. A 6-inch pipe does not automatically tell you everything you need to know about its flange connection. The equipment nozzle may determine: Flange face Pressure class Drilling Material Bore requirements Bolt pattern Dimensional limitations Gasket arrangement This is particularly important around pumps, chillers, heat exchangers and large valves. The flange should therefore be selected from the equipment connection outward, rather than simply from the pipe size inward. That small change in thinking can prevent a surprisingly large number of installation problems. A Practical Selection Framework Before releasing a flange order for a commercial HVAC project, verify the following: Application Selection Consideration Key Check Chilled-water mains Pressure-class flange Operating pressure and temperature Condenser-water piping Carbon-steel or specified material Water chemistry and project specification Cast-iron equipment Flat-face connection Full-face gasket compatibility Large pumps Equipment-compatible flange Nozzle dimensions and face Chillers Manufacturer-specified connection Equipment schedule High-rise systems Higher pressure class where required Static head at lower levels Heating-water systems Temperature-rated connection Pressure-temperature conditions Large valves Compatible flange and drilling Valve manufacturer’s data Critical or demanding services Engineering-specified flange style Weld neck vs. slip-on requirements Five Questions to Ask Before

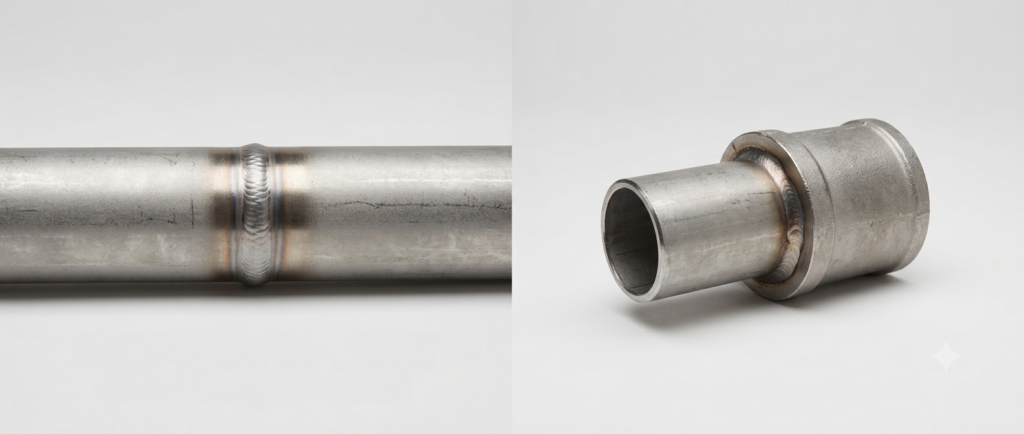

Both butt welding and socket welding flanges connect a flange to a PE, PP, or PVDF stub end but the method you choose affects strength, installation process, and suitability for your application. What Is a Butt Welding Connection? In a butt welding connection, the stub end is welded directly, end-to-end, to the pipe — creating a continuous, full-strength joint. Stu Piping’s PPDA butt welding flange range is built for this connection style and is typically favored for larger diameters and higher-stress applications. What Is a Socket Welding Connection? A socket welding connection joins the pipe by inserting it into a socketed fitting before welding around the circumference. This method is often quicker to install on smaller diameter pipe and is well suited to lower-stress, smaller-scale applications. Strength and Application Differences Butt welding generally provides a stronger, more uniform joint, making it the preferred choice for high-pressure or large-diameter piping systems in water, gas, and mining applications Socket welding offers faster installation for smaller pipe sizes, often used where high joint strength is less critical Which One Fits Your Project? The right choice depends on pipe diameter, pressure requirements, and site installation conditions. Stu Piping’s PPDA range is available in both butt welding and socket welding configurations, so your team can specify the connection method that best fits the application.

One of the most common mistakes in flange selection is assuming the PN (Pressure Nominal) rating printed on a flange is the same as its maximum safe operating pressure. It isn’t — and understanding the difference matters for both safety and procurement accuracy. What PN Rating Actually Means PN rating refers to the drilling standard — the bolt circle diameter, bolt hole pattern, and flange face dimensions defined by EN 1092 / DIN 2501. It tells you how the flange will physically connect to a mating flange or pipe fitting. It does not, on its own, define the maximum pressure the flange can safely handle. What Determines Actual Operating Pressure Maximum operating pressure depends on the flange’s material construction, wall thickness, and design — not just its drilling pattern. That’s why two flanges with the same PN rating can have different maximum operating pressures depending on how they’re built. A Practical Example A flange sized DA 225 might be drilled to DIN 2501 / EN 1092 PN10 — but still carry a maximum operating pressure rating of 16 bar, well above what the drilling standard alone would suggest. This is common with reinforced encapsulated flange designs like Stu Piping’s PPDA and DF2DI ranges, where the internal ductile iron insert and glass-reinforced polypropylene shell add strength beyond the base PN classification. Why This Matters for Your Project Relying on PN rating alone when specifying flanges can lead to either: Over-speccing — paying for a higher-rated flange than the application requires, or Under-speccing — assuming a lower safety margin than the flange actually provides Always check the manufacturer’s published maximum operating pressure alongside the PN/drilling standard before finalizing an order. A Simple Safety Recommendation Regardless of PN rating, proper installation matters. Stu Piping recommends using washers below the screw head and nut on all flange installations to protect the flange surface and maintain consistent bolt tension.

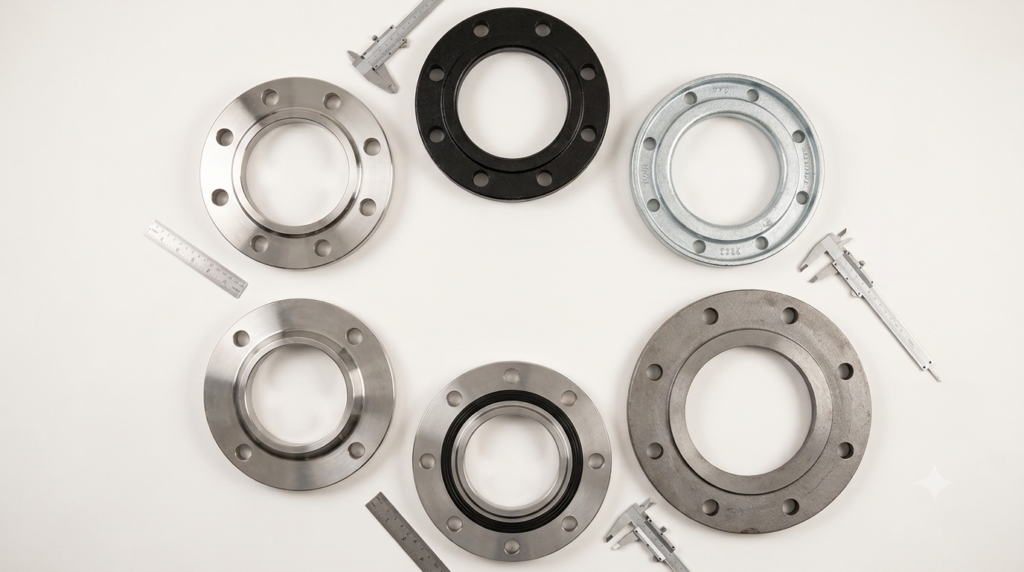

Selecting the correct flange isn’t just about matching a pipe diameter — it’s about balancing pressure rating, material compatibility, environment, and installation method. Here’s a practical framework for making the right choice. Identify Your Pipe Material and Connection Type Start with what you’re connecting to. PE, PP, and PVDF pipe systems typically use stub-end connections, joined by either butt welding (PPDA) or socket welding (PPDA socket variant), depending on pipe diameter and wall thickness. Larger diameters generally favor butt welding for structural strength. Match the Flange Standard to Your Region and Project Spec EN 1092 / DIN 2501 — standard across Europe and most international water/gas projects (used across the PPDA, PL2DI, DF2DI, and PPFL ranges) ANSI B16.5 — required for North American and ANSI-standardized projects (PPDI range) Using the wrong drilling standard is one of the most common — and costly — flange ordering mistakes, so always confirm the project’s governing standard before ordering. Check Pressure Rating vs. Operating Pressure It’s a common misconception that a flange’s PN or Class rating is the same as its maximum operating pressure — it isn’t. For example, a flange drilled to PN10 may still be rated for a 16 bar maximum operating pressure, depending on design. Always confirm the manufacturer’s stated maximum operating pressure separately from the drilling standard. Consider Your Operating Environment Corrosive or wet environments (water treatment, aquaculture, marine) → polypropylene encapsulated or full polypropylene flanges (PPDA, DF2DI, PL2DI, PPFL) avoid the corrosion risk of exposed steel Chemically aggressive applications where metal contact must be fully avoided → solid polypropylene (PPFL) General industrial and mining applications → convoluted or encapsulated designs balance strength and corrosion resistance Factor in Installation and Logistics On large projects with high flange counts, weight adds up fast — both in freight cost and on-site handling labor. Lightweight encapsulated flanges can meaningfully reduce both, without compromising the safety factor.

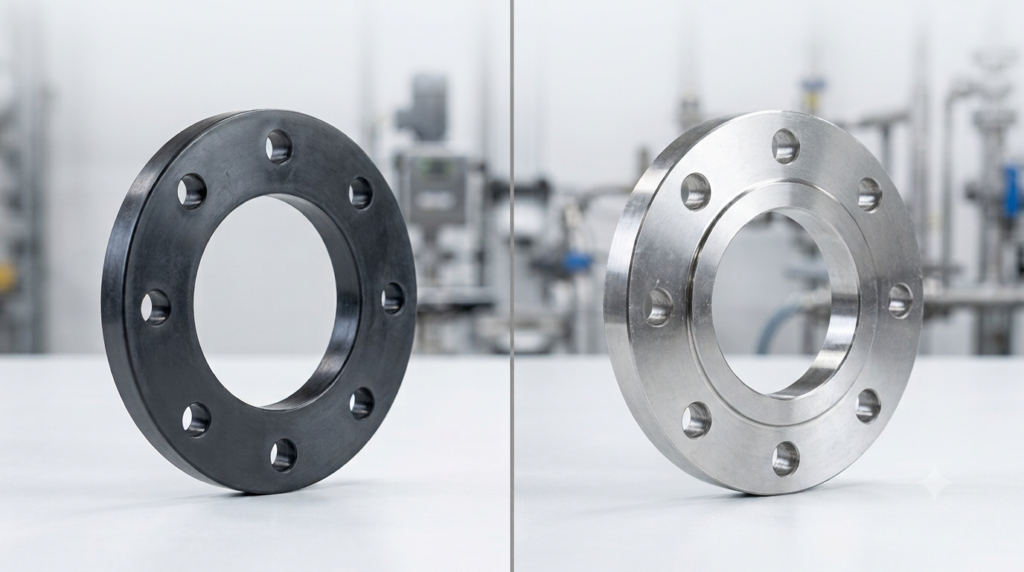

Choosing between a polypropylene encapsulated flange and a traditional steel flange affects everything from installation cost to long-term system reliability. Here’s how they compare. Weight and Handling Polypropylene encapsulated flanges — like Stu Piping’s PPDA and DF2DI ranges — can be up to 50% lighter than conventional steel backing rings. That translates directly into easier on-site handling, lower crane/lifting requirements, and reduced freight costs, especially on large projects with hundreds of flange connections. Corrosion Resistance Steel flanges, even coated ones, remain vulnerable to corrosion in aggressive or wet environments — a major concern in water treatment, aquaculture, and marine applications. Polypropylene-encapsulated flanges eliminate this risk entirely at the flange body, since the ductile iron core never contacts the process fluid or atmosphere. Installation and Bolt Tension One overlooked advantage of convoluted PP flange designs (like the DF2DI) is bolt tension retention. The flexible cross section helps bolts maintain tension over time, reducing the need for re-torqueing — a common maintenance task with rigid steel flanges. Cost Considerations While the upfront unit cost of a PP-encapsulated flange can be comparable to or slightly higher than steel, the total installed cost is often lower once you factor in reduced freight weight, less handling equipment, and lower long-term maintenance from corrosion. When Steel Still Makes Sense Steel flanges remain the right choice for very high-pressure applications outside the PN/Class ratings of encapsulated flanges, or where local project specifications mandate all-metal construction. Which Flange Range Fits Your Application? Stu Piping’s PPDA, PPDI, PL2DI, DF2DI, and PPFL ranges cover butt welding, socket welding, ANSI, and plate-style connections across water, gas, mining, marine, and aquaculture industries. [Contact us] to discuss your project’s flange specification.
